Cross rollers are crucial components in various mechanical systems, offering high load - carrying capacity and precision motion control. As a dedicated Cross Roller supplier, I often encounter inquiries about the materials used to manufacture these essential parts. In this blog, I will delve into the common materials for cross rollers, their properties, and applications.
1. Bearing Steel
Bearing steel is one of the most widely used materials for cross rollers. A prime example is AISI 52100 steel, which is well - known in the bearing industry. This type of steel has excellent hardness, typically around 60 - 64 HRC (Rockwell hardness scale). The high hardness allows cross rollers made from AISI 52100 to withstand heavy radial and axial loads without significant deformation.
The carbon content of AISI 52100 is approximately 1%, which contributes to its hardenability. During the manufacturing process, the steel is heat - treated to achieve the desired hardness and toughness. After quenching and tempering, the steel forms a fine - grained martensitic structure, providing good wear resistance.
Cross rollers made of bearing steel are commonly used in applications such as industrial machinery, machine tools, and automotive transmissions. In industrial machinery, they ensure smooth operation of conveyors, reducing friction and wear between moving parts. In automotive transmissions, they help in the efficient transfer of torque, enhancing the overall performance of the vehicle. You can find more information about related products like Conical Rollers on our website.
2. Stainless Steel
Stainless steel is another important material for cross rollers, especially in applications where corrosion resistance is required. Grade 440C stainless steel is a popular choice. It contains a significant amount of chromium (around 16 - 18%), which forms a passive oxide layer on the surface of the steel, protecting it from rust and corrosion.
The hardness of 440C stainless steel can reach up to 58 - 60 HRC after heat treatment. Although it is slightly less hard than AISI 52100 bearing steel, it still offers good wear resistance. The combination of corrosion resistance and wear resistance makes cross rollers made of 440C stainless steel suitable for use in harsh environments, such as marine applications, food processing equipment, and medical devices.

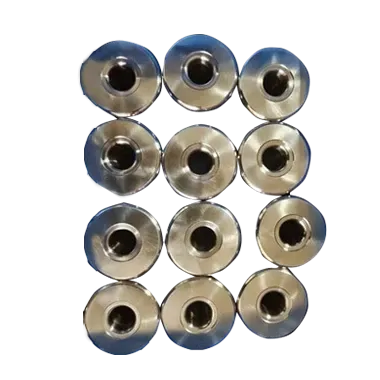

In marine applications, cross rollers made of stainless steel can withstand the corrosive effects of saltwater, ensuring the long - term reliability of shipboard machinery. In food processing equipment, they meet the strict hygiene requirements as they do not rust or contaminate the food. For medical devices, the corrosion resistance and smooth surface finish of stainless - steel cross rollers are essential for maintaining sterility and proper functioning. Our 2022 New product Taper Roller With Hole in The Center also offers options in stainless steel for specific needs.
3. Ceramic Materials
Ceramic materials, such as silicon nitride (Si₃N₄), are increasingly being used in cross - roller manufacturing. Silicon nitride has several unique properties that make it an attractive choice. Firstly, it has a very low density compared to steel, which reduces the overall weight of the mechanical system. This is particularly beneficial in high - speed applications, as it reduces the inertial forces and allows for faster acceleration and deceleration.
Secondly, silicon nitride has excellent hardness (around 1500 - 1800 HV, Vickers hardness scale), which provides superior wear resistance. It also has a high thermal stability, being able to withstand high temperatures without significant loss of mechanical properties. This makes cross rollers made of silicon nitride suitable for use in high - speed bearings, aerospace applications, and high - precision machinery.
In high - speed bearings, ceramic cross rollers can operate at much higher speeds than their steel counterparts, reducing the risk of heat - related failures. In aerospace applications, the lightweight and high - performance characteristics of ceramic cross rollers contribute to the overall efficiency and reliability of aircraft components. Our Cross Roller products also include ceramic options for customers seeking high - end performance.
4. Plastic Materials
Plastic materials, such as polyamide (nylon) and polytetrafluoroethylene (PTFE), are used in certain cross - roller applications. Polyamide is a strong and lightweight material with good self - lubricating properties. Cross rollers made of polyamide are often used in low - load and low - speed applications, such as office equipment, consumer electronics, and some types of light - duty conveyors.
PTFE, on the other hand, is known for its extremely low coefficient of friction. Cross rollers made of PTFE can significantly reduce friction in mechanical systems, making them suitable for applications where smooth and quiet operation is required. They are commonly used in precision instruments, optical devices, and some types of medical equipment.
5. Considerations in Material Selection
When selecting the material for cross rollers, several factors need to be considered. Load capacity is a primary concern. Applications with high radial and axial loads require materials with high hardness and strength, such as bearing steel. Corrosion resistance is crucial in environments where the cross rollers are exposed to moisture, chemicals, or saltwater. In such cases, stainless steel or ceramic materials are more appropriate.
Speed and temperature also play important roles. High - speed applications demand materials with low density and high thermal stability, like ceramic materials. In high - temperature environments, materials that can maintain their mechanical properties at elevated temperatures are necessary. Cost is another factor. While ceramic and some high - performance stainless steels may offer excellent properties, they are often more expensive than bearing steel or plastic materials.
6. Our Expertise as a Cross Roller Supplier
As a cross roller supplier, we have extensive experience in providing high - quality cross rollers made from various materials. We understand the specific requirements of different industries and applications, and we can offer customized solutions based on your needs. Whether you need cross rollers for a high - speed aerospace application or a low - load consumer product, we have the expertise to meet your demands.
We ensure strict quality control throughout the manufacturing process. From material selection to final inspection, every step is carefully monitored to guarantee that our cross rollers meet the highest standards of quality and performance. Our team of engineers and technicians is always ready to provide technical support and advice on material selection and application.
If you are in the market for cross rollers, we invite you to contact us for procurement and further discussions. We can provide detailed product information, samples, and competitive pricing. Our goal is to establish long - term partnerships with our customers by providing reliable products and excellent service.
References
- "Bearing Steel: Properties and Applications" - ASM Handbook
- "Stainless Steel for Engineering Applications" - Butterworth - Heinemann
- "Ceramic Materials in High - Performance Engineering" - Springer
- "Plastic Materials in Mechanical Engineering" - Wiley
